Craneway doors

Sealing craneways with door solutions improves the building’s energy efficiency considerably and also reduces dust and noise problems.

Innovative fabric fold-up craneway doors for industrial applications

Champion Door's fabric fold-up craneway doors are ideal for large industrial spaces, offering solutions to common craneway challenges. These doors can partition areas efficiently, covering craneways and entry points with a single system. The crane doors operate independently and can be raised during crane use, optimizing energy efficiency in cold climates. Durable and UV-protected, these doors also offer optional features like windows and security enhancements.

Crane door options

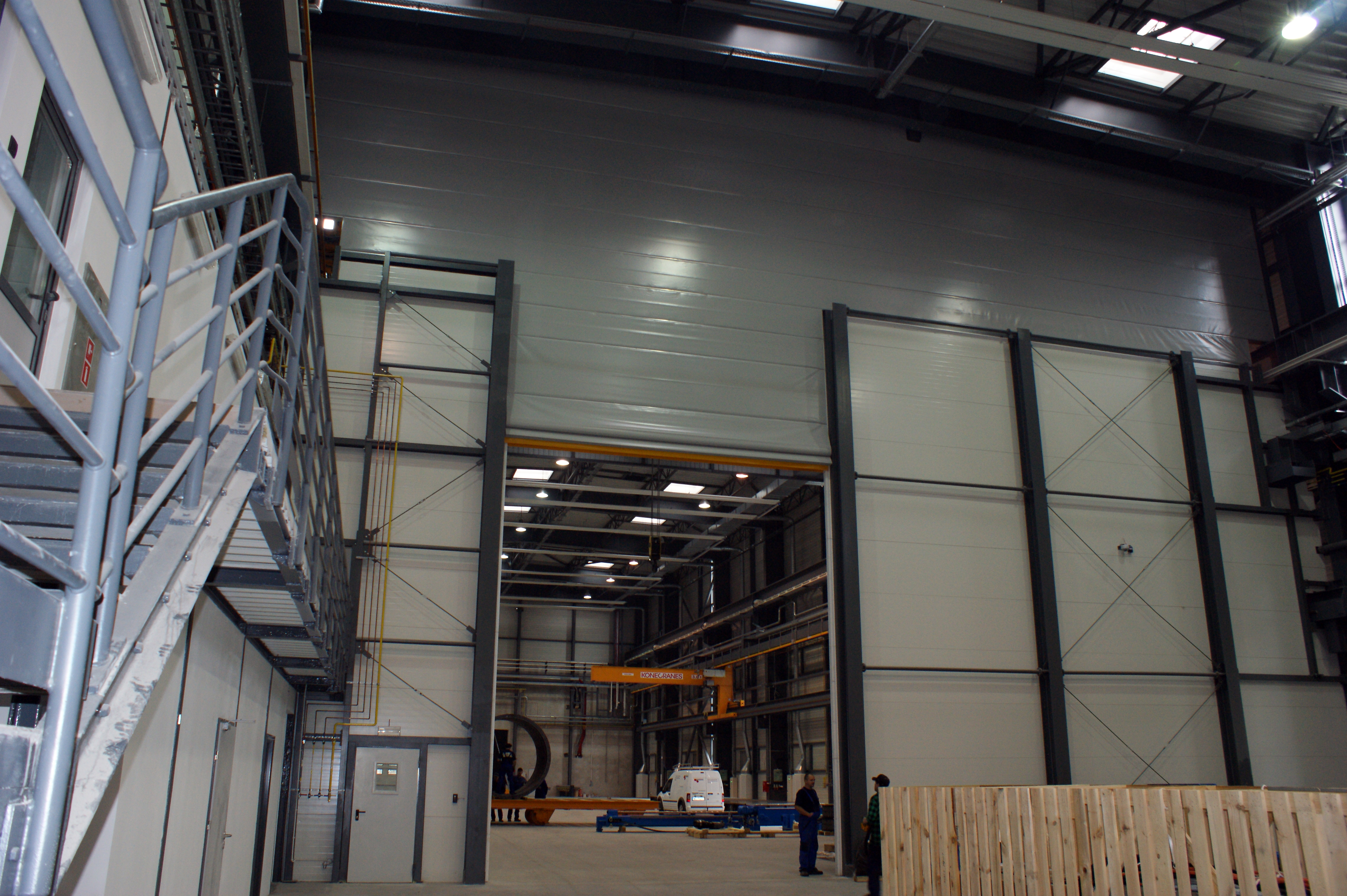

Logstor Champion door upper crane door

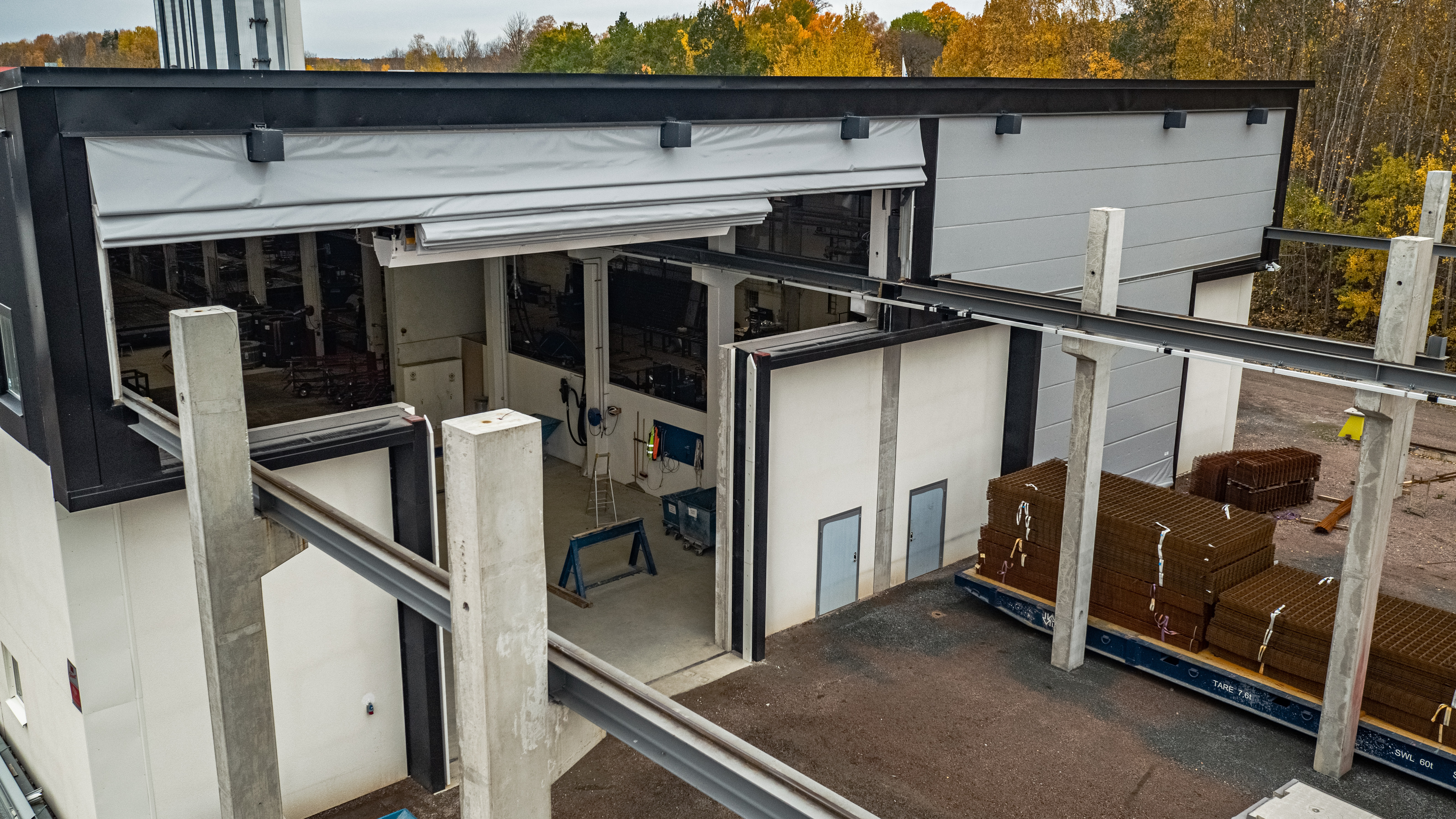

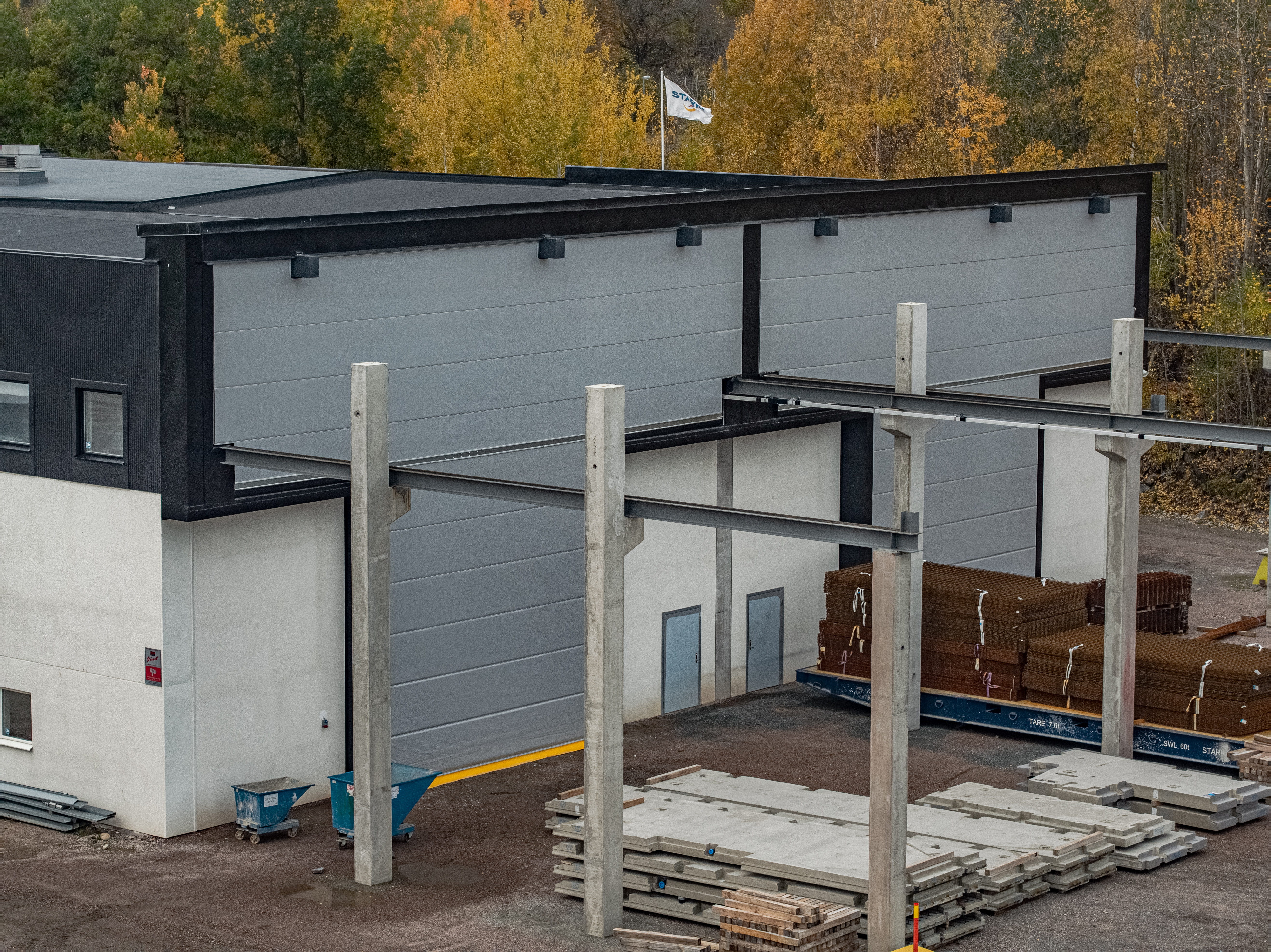

Upper craneway door

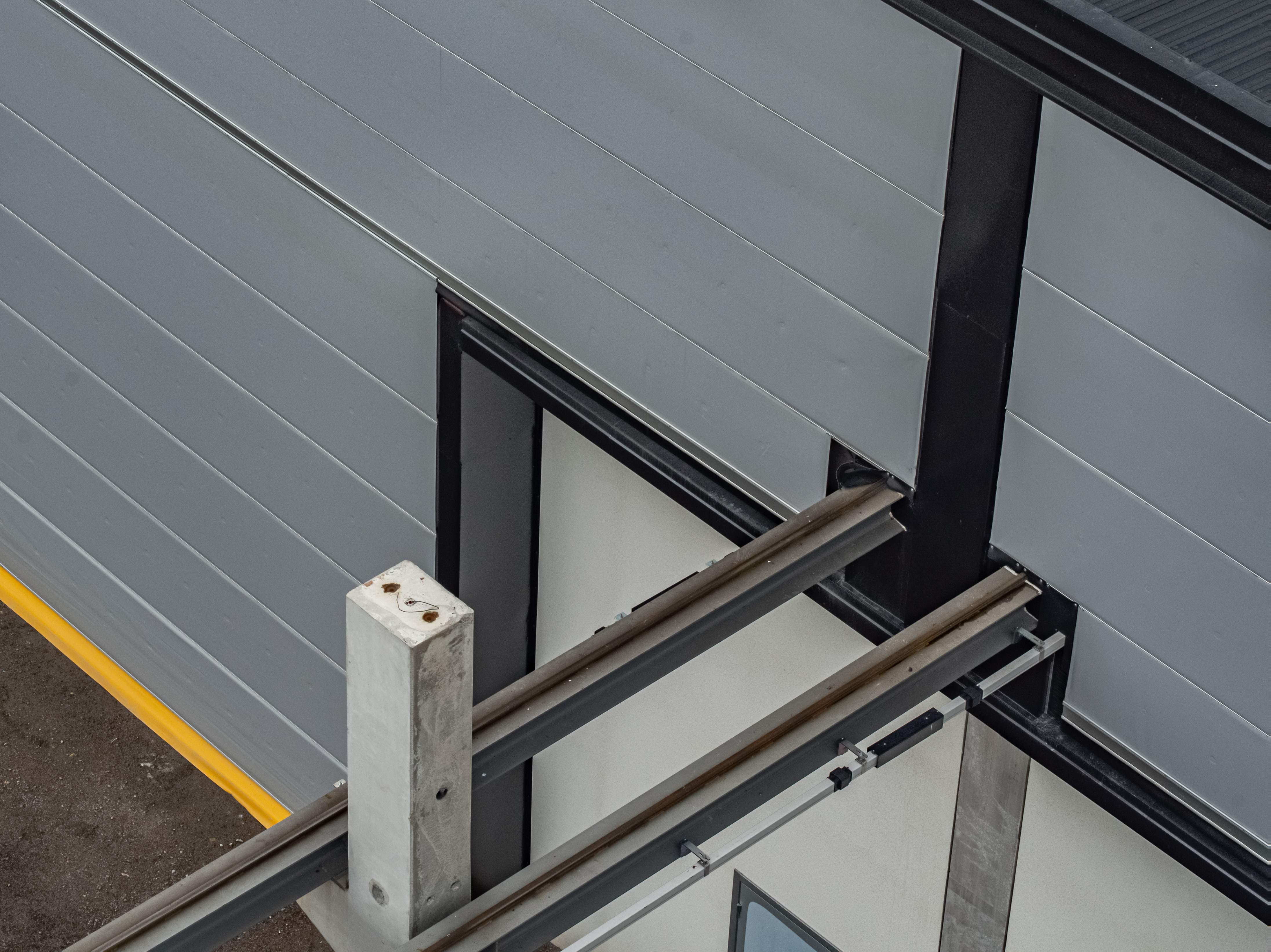

Functional upper crane door system with the door at the roof edge at the crane rails.

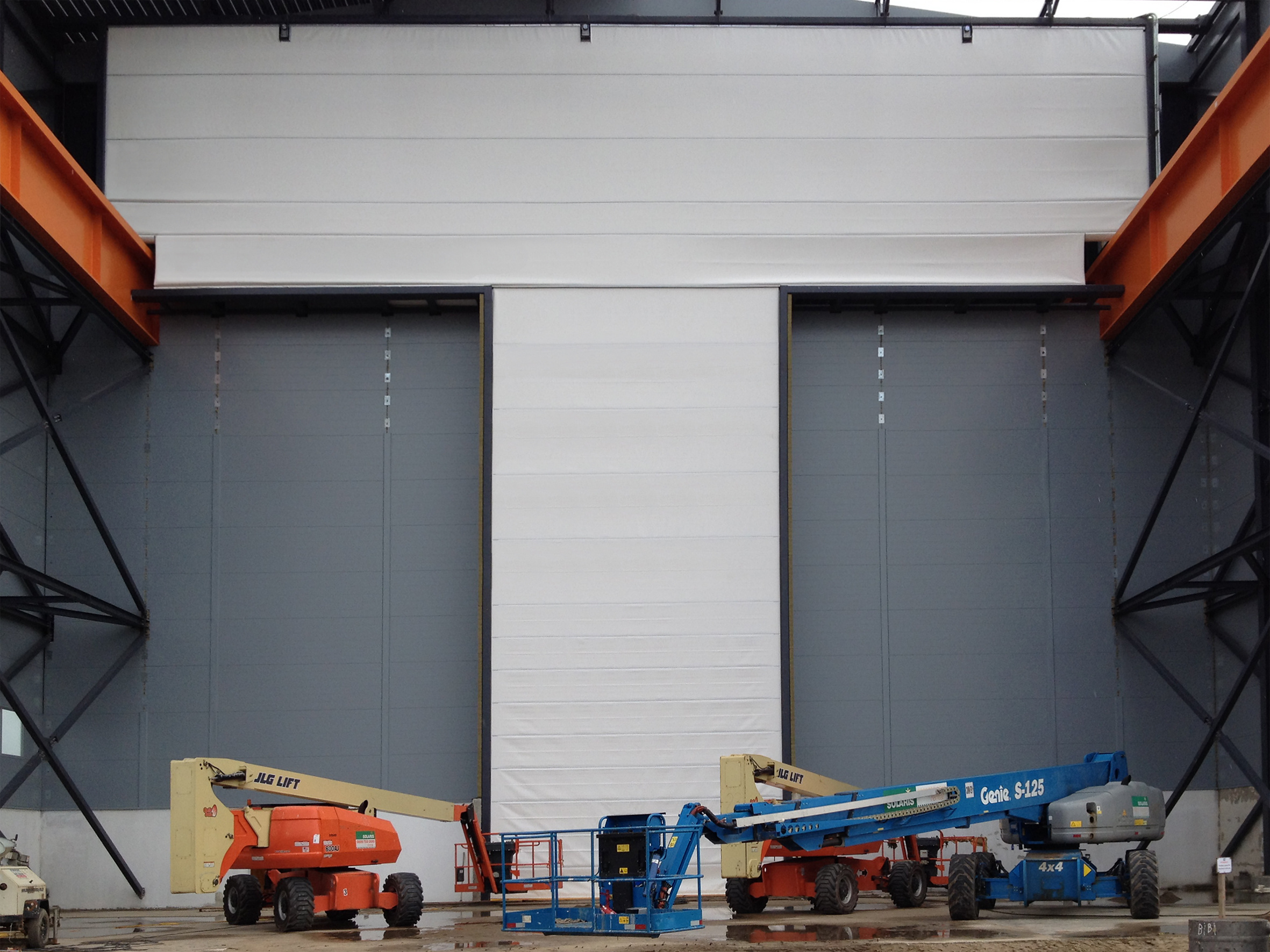

Champion door T-type crane door T

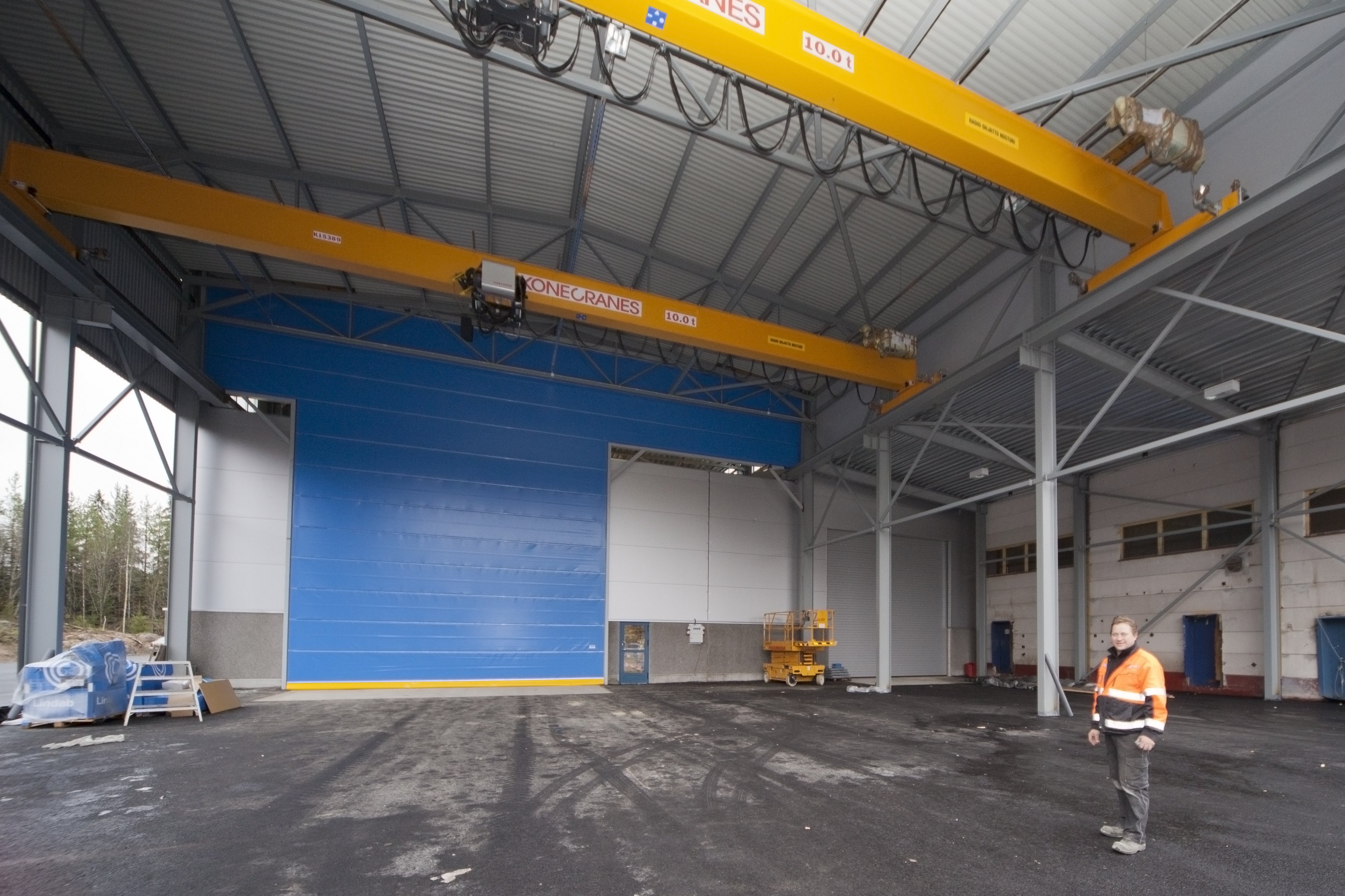

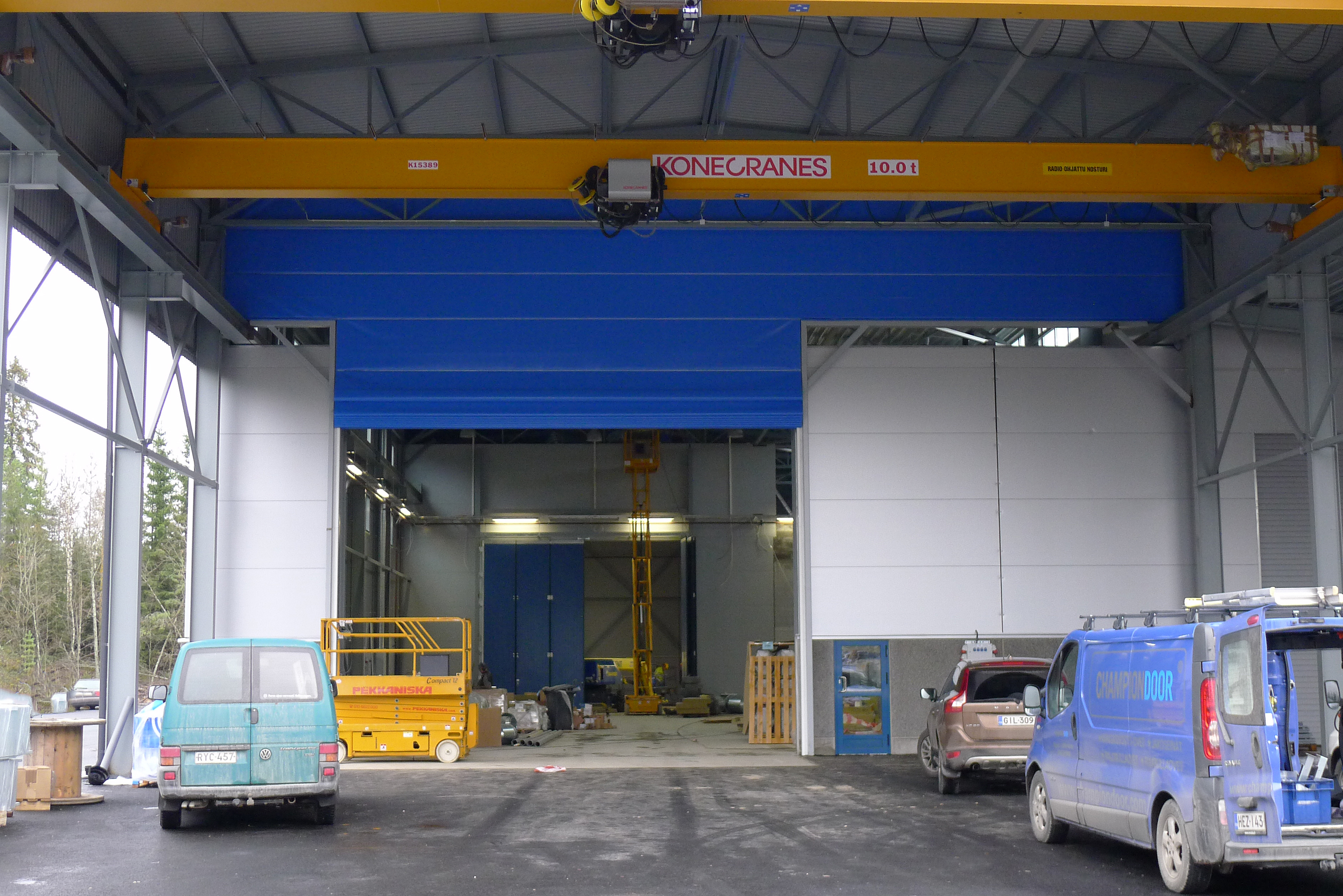

T-type craneway door

A revolutionary T-type crane door system designed with a central section that independently facilitates vehicle traffic.

Why choose us?

In challenging conditions, reliable and smart solutions are needed. Champion Door is an internationally respected Finnish industrial door manufacturer whose fabric fold-up doors are suitable for large and demanding locations. Our doors have no size limitations, and we tailor them to meet the needs of our customers.
Efficient project management
Installation and maintenance service
Choise of professionals worldwide
Visualized and real time door status monitoring system

Leading smart door features

Superior features as standard

Our doors are equipped with exceptional standard features, with the option to select additional features tailored to specific applications and environmental conditions.
Reliable, long-lasting and
cost effective
Lightweight design - no need for heavy support structure
Withstands high wind loads
Quicker opening time when compared to sliding doors
Takes minimal space in the building
Possibility to full automatic use

Technical Specifications

General information
  • CE-marked
  • Meets requirements of EN 13241-1
  • Wind load: any windload
  • Maximum door size: no size limitations
Fabric
  • Mildew-, UV- and fire-protected
  • Weight 900 g/m²
  • Tear strength: 550/550 N
  • Tensile strength: 4000/4000 N/5 cm
  • Heat and frost resistance +70°C to -35°C
  • Best functionality up to -35°C, arctic fabric up to -60°C
  • Fabric options: thermal insulating, windows, arctic fabric, soundproofing, security burglar protection
Other materials and surface treatments
  • Upper console - hot-dip galvanized steel
  • Side guides - anodized aluminum profile
  • Lower (bottom) beam - hot-dip galvanized steel
  • Horizontal beams - aluminum
  • Mullions - sandblasted, primed and painted (2 layers)
  • Other parts - aluminum, nylon, galvanized and stainless steel
Electrical system
  • Enclosure class: IP54
  • Operating voltage: 3x230/400 V 50 Hz
  • Control voltage: 24 V
  • Motor rating: 1 to 5 kW/motor
  • Torsion: from 400 Nm to 4800 Nm/motor
U-value (door leaf) & sound level

Warm U-value (door leaf)

  • 0.71 W / (m2 * K)
  • even 0.57 W / (m2 * K) with additional insulation

Warm U-value (door leaf)

  • 25 dB ->





Our customers in craneway doors

Logo_Eiffage_Métal neste_oil_logo thyssengrupp_logo Outokumpu_logo
st3-offshore-logo-vector wärtsilä_logo Starka-logo-färg-blå UPM.HE_BIG-8e18fecb
ExecuJet MRO Services Malaysia chose 140 meter wide Champion Door

ExecuJet MRO Services Malaysia chose 140 meter wide Champion Door

ExecuJet MRO Services Malaysia chose Champion Door's 140-meter hangar door for unmatched efficiency, reliability and expertise

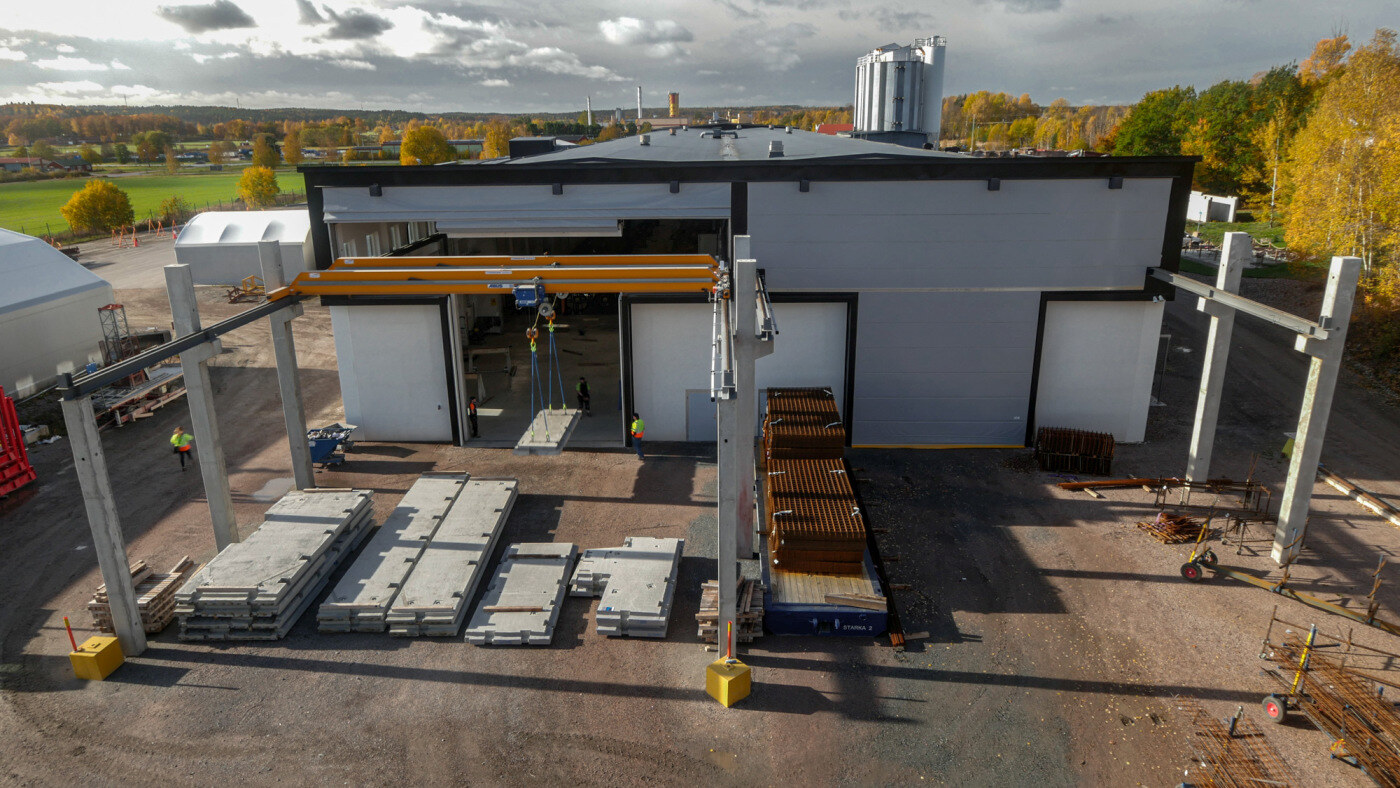

The time savings brought by Champion Door's doors are reflected in JPJ-Wood's production figures.
