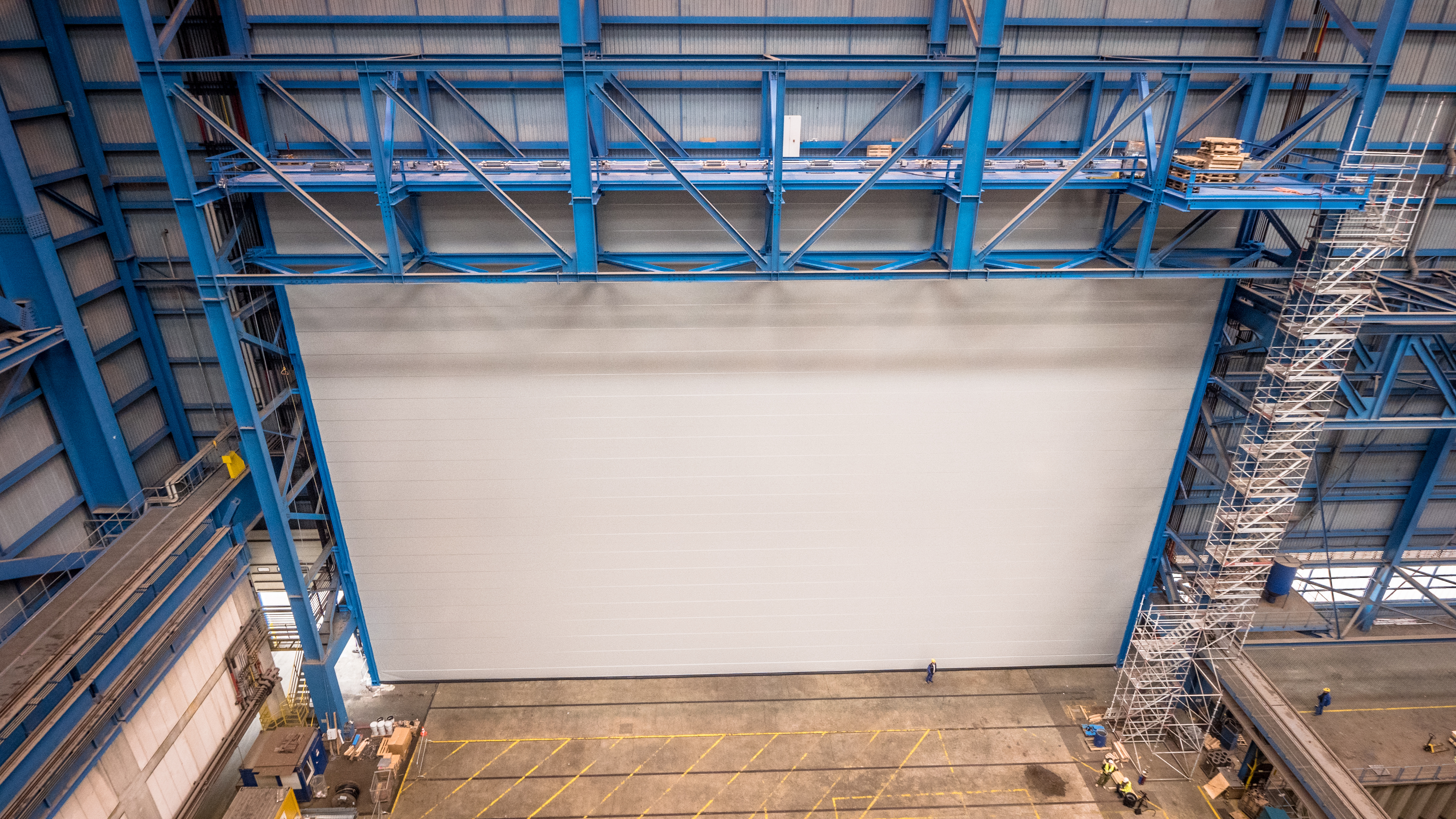

Our industrial doors are designed for reliable operation in cold conditions, featuring superior thermal insulation that performs well in sub-zero temperatures. With excellent insulation properties, they minimize condensation and prevent freezing while offering low service requirements and life-cycle costs.
Available in any size, these doors have varying frame thicknesses and fold straight up, saving space. They are suitable for all wind classes.
Various specialized fabrics are available as alternatives to the standard fabric. For high-temperature environments, a silicone fabric resistant to molten metal splashes can be installed. Thermally insulated fabric ensures a stable indoor temperature, contributing to energy savings in both cold and hot conditions. An anti-burglar fabric is utilized for enhanced security, while a translucent fabric permits 48% light transmission. Additionally, windows can be included as an optional feature.
A fabric door is insulated differently from a steel sectional door, and the difference shows as soon as the hall is heated or cooled. The questions below cover what is included as standard, what is specified as an option, and what insulation changes in daily use.
Is an industrial fabric door thermally insulated as standard?
Thermal insulation is a fabric option, not a standard feature. It is specified when the building is heated or cooled, and it is the option most of our industrial customers choose. Including it in the original order is considerably cheaper than retrofitting it later, so it is worth deciding at the quotation stage.
What U-value does an insulated door reach?
The insulated door leaf reaches a U-value of 0.70 W/m²K, and 0.57 W/m²K with additional insulation. The seal around the leaf matters as much as the leaf itself: every anodized aluminium side rail carries thick brushes on both sides, and wide weather pads on the internal edges of the fabric press against the rails so that no gaps are left for wind to drive through. Across a large opening, air leakage around a door usually costs more than heat transmission through it.
How cold, or how hot, can the door work in?
The standard fabric is rated from +70 °C to −35 °C, with best functionality down to −35 °C. For arctic sites an arctic fabric extends this to −60 °C. Insulation works in the other direction too: in a cooled hall, insulated fabric helps hold the indoor temperature and reduces the cooling load. For high-temperature environments a silicone fabric resistant to molten metal splashes is available.
Does an insulated door reduce condensation and freezing?
Yes. The inner surface of an insulated leaf stays closer to the indoor temperature, so condensation on the fabric is reduced. There is also no floor rail in which meltwater can refreeze and jam the door — the leaf folds straight up, clear of the opening, so nothing in the doorway collects snow or ice.
What other fabric options can be specified at the same time?
Sound reduction and acoustic insulation, anti-static fabric for ATEX areas, burglar protection to RC 3 under EN 1627, windows and vision panels, insect screen, rubber protection for sandblasting workshops, and translucent fabric that transmits 48 % of light.
In challenging conditions, reliable and smart solutions are needed. Champion Door is an internationally respected Finnish industrial door manufacturer whose fabric fold-up doors are suitable for large and demanding locations. Our doors have no size limitations, and we tailor them to meet the needs of our customers.
Efficient project management
Installation and maintenance service
Choise of professionals worldwide
Visualized and real time door status monitoring system
Leading smart door features
Superior features as standard
Our doors are equipped with exceptional standard features, with the option to select additional features tailored to specific applications and environmental conditions.
Reliable, long-lasting and cost effective
Lightweight design - no need for heavy support structure
Withstands high wind loads
Quicker opening time when compared to sliding doors
Takes minimal space in the building
Possibility to full automatic use
Technical Specifications
General information
CE-marked
Meets requirements of EN 13241-1
Wind load: any windload
Maximum door size: no size limitations
Fabric
Mildew-, UV- and fire-protected
Weight 900 g/m²
Tear strength: 550/550 N
Tensile strength: 4000/4000 N/5 cm
Heat and frost resistance +70°C to -35°C
Best functionality up to -35°C, arctic fabric up to -60°C
JPJ-Wood has been a customer of Champion Door since 2018. The annual capacity of the sawmill is 200,000 m3 of finished timber, for which the production premises must be as well-suited as possible. JPJ-Wood recently installed six new doors from Champion Door in their new planing mill site, making it a total of seven Champion Doors in their premises. The products of Champion Door were already familiar to Mikko Huttunen, the Maintenance Manager.
Iceland – the North-European home to volcanoes, geysers and extreme weather conditions. The harsh wind blowing from the surrounding sea is accompanied by rain, snow and exceptionally cold temperatures.
Our motor-operated fabric fold-up doors are custom-made to meet specific customer needs featuring a variety of options for hangar and industrial doors.
Specialized in efficient project management, we focus on delivering swift, proactive partnerships, backed by global expertise, to ensure seamless communication, continuous support, and smooth project completion.
All our doors are built for durability, featuring corrosion-protected metal components and designs resistant to dust, dirt, and moisture for minimal maintenance and reduced life-cycle costs.
Our maintenance service includes regular inspections by qualified technicians, genuine parts, and the option for a maintenance contract to ensure optimal performance.
